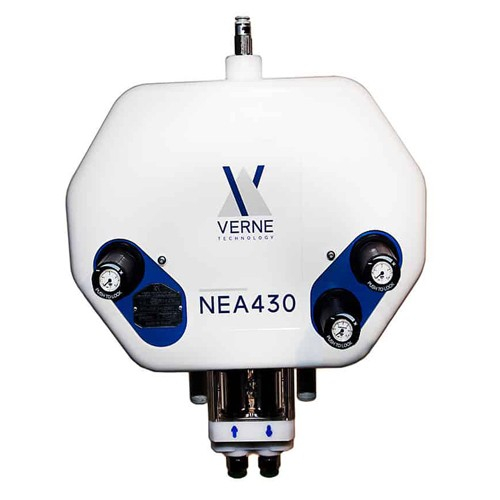

VERNE NEA430实验室小型粉粒输送机
NEA 430是一个完全气动的系统,可低压输送高密度粉末、颗粒和混合物。可连续以高容量、高速率的进行粉体输送。
系统有四个操作模式,确保不间断的输送独特的技术和结构设计,比传统的真空泵吸取有更高的生产力和持续输送的性能。

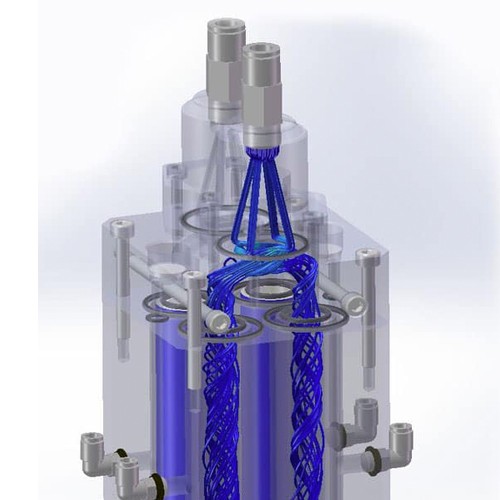

双旋风阀系统的设计可在极短时间内完成清洁,省却拆缷组件所需停机的时间, NEA 430优异的性能和结构设计可很快速,容易的安装在生产线上用。
三个压力錶调节阀(用于进料、输送、夹具控制)让操作者可以快速读取并在必要时重新校正泵浦的工作压力值。
Model/型号 | Technical specifications/技术规格 |
NEA 430 | Maximum delivery rate | 4 kg/min |
Powder feed distance | up to 30m |
Powder aspiration distance | up to 3,5m |
EC conformity | Atex II 3 D c T6 |
Maximum inlet pressure | 6 bar |
Maximum cleaning pressure | 7 bar |
Compressed air consumption | 330l/min |
Aspiration-delivery line size | Ext. diameter 16 mm, polyethylene |
Overall dimensions of NEA 430 unit | mm 400 x 542 x 220 |
Weight | 14,5 Kg |
Continuous operating pressure control, NEA 430 | 4,8 bar |
