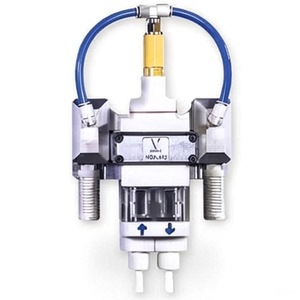

Verne
粉粒体输送设备
工业级粉粒体输送机
管式真空输送器
真空输送器
粉粒体输送器
| Model/型号 | Technical specifications/技术规格 | |
| NEA 230 | Maximum delivery rate | Variable, depending on specific weight of product |
| Granulate feed distance | Up to 30m | |
| Granulate aspiration distance | Up to 3,5m | |
| EC conformity | Atex II 3 D c T6 | |
| Minimum inlet pressure | 6 bar | |
| Maximum cleaning pressure | 7 bar | |
| Compressed air consumption | l/min | |
| Aspiration-delivery line size | Ext. diameter 16 mm, polyethylene | |
| Overall dimensions of NEA 230 unit | mm 400 x 545 x 220 | |
| Weight | 14,5 Kg | |
| Continuous operating pressure control, NEA 230 | 4,8 bar | |
| Model/型号 | Technical specifications/技术规格 | |
| NEA 230 | Maximum delivery rate | Variable, depending on specific weight of product |
| Granulate feed distance | Up to 30m | |
| Granulate aspiration distance | Up to 3,5m | |
| EC conformity | Atex II 3 D c T6 | |
| Minimum inlet pressure | 6 bar | |
| Maximum cleaning pressure | 7 bar | |
| Compressed air consumption | l/min | |
| Aspiration-delivery line size | Ext. diameter 16 mm, polyethylene | |
| Overall dimensions of NEA 230 unit | mm 400 x 545 x 220 | |
| Weight | 14,5 Kg | |
| Continuous operating pressure control, NEA 230 | 4,8 bar | |
