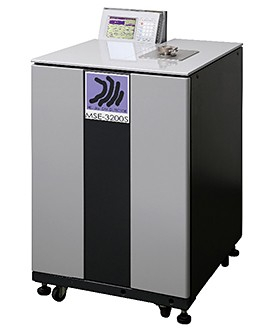

Shimadzu氦气检漏仪 MSE-3200S

数量:
  • MSE-3200S
  • Shimadzu
Shimadzu氦气检漏仪 MSE-3200S
通用型,全自动操作
线路检测测试仪,适用于各种真空利用/汽车零件的批量生产线。

Shimadzu Helium Leak Detector
Universal type, full automatic operation

Line inspection tester for mass production lines of various vacuum-utilizing/automotive parts.





■Specifications MSE-3200S

Sensitivity 10-13~100Pa・m3/s[He]
Analyzer tube 270̊ magnetic deflecting type (Flux density: 0.17T)
Yttria-coated iridium filament (2 pcs.)
Automatic sensitivity calibration with temperature compensation
Vacuum System Molecular drag pump specially designed for leak detector (Structure of exhaust 70L/s)
Oil-sealed rotary vacuum pump (fore vacuum pump) (30L/min 50Hz)
Oil-sealed rotary vacuum pump (roughing vacuum pump) (300L/min 50Hz)
Pirani gage : Provided in two lines
Test Port Maximum pressure 1000Pa
Connection port : NW25KF
Weight Main unit : approx. 170kg
Power Requirements 200VAC±10%, three phases, 50/60Hz
Input/output RS-232C interface
Printer interface

■Specifications MSE-3210S

Sensitivity 10-13~100Pa・m3/s[He]
Analyzer tube 270̊ magnetic deflecting type (Flux density: 0.17T)
Yttria-coated iridium filament (2 pcs.)
Automatic sensitivity calibration with
temperature compensation
Vacuum System Molecular drag pump specially designed for leak detector (Structure of exhaust 70L/s)
Oil-sealed rotary vacuum pump (fore vacuum pump) (30L/min 50Hz)
Oil-sealed rotary vacuum pump (roughing vacuum pump) (1080L/min 50Hz)
Pirani gage : Provided in two lines
Test Port Maximum pressure 1000Pa
Connection port : NW25KF
Weight Main unit : approx. 240kg
Power Requirements 200VAC±10%, three phases, 50/60Hz
Input/output RS-232C interface
Printer interface

■Dimensions MSE-3200S / MSE-3210S

MSE-3200S


 Application Example
bg Application Example bg

Vacuum Spray Method (work of approx. 5 litter)

  • Vacuum inside of the test piece and spray helium gas on the outside surface of the work. If there is any leak point, helium will be detected from inside the test piece.
  • Application: welded pipes, flexible tubes, hermetic seals etc.

Hood Method

  • Wrap the test piece with hood. Vacuum inside of the test piece and inject helium gas in the hood. If there is any leak point, helium will be detected from inside of the test piece.
  • Application: mass flow controller etc.

Sniffer Method (Optional sniffer unit is necessary)

  • This method is used when it is not possible to vacuum the inside of the test piece for some reason. Put pressurized helium gas (or mixed gas with helium) inside of the test piece and sniff on the outside surface of the test piece. If there is any leak point, helium will be sniffed and detected.
  • Application : compressors, radiators, condensers etc.



Bombing Method
(test chamber and bombing machine are necessary)

  • This method is used to test leak of airtight parts. Inject helium gas in test piece with a bombing machine. Put the test piece in a test chamber of a helium leak detector and vacuum the chamber. If there is any leak, helium will leak from inside the piece and be detected.
  • Application: crystal quarts, SAW filters etc.

    ※ Test chamber and bombing equipment are required.

Chamber Method

  • Put the test piece, which has been filled with helium gas, in a bell jar or a chamber.
    Vacuum the chamber or the bell jar with roughing vacuum pump and connect to a helium leak detector. Any leaks will allow helium to escape and be detected.
  • Application: fire extinguishers, air bag inflators etc.

Parallel Evacuation Method (The leak indicator unit is an option)

  • For a huge chamber or test piece, use large roughing pumps to vacuum and detect helium gas exhausted.
  • Application: vacuum vaporizing systems, absorption chiller, vacuum furnaces etc.

    ※ Wireless leak indicator is optional.
